PFA 母管牙90度弯头
订购热线：0512-65853646
产品详情
尺寸表
| | T | NPT | HEX | (A) | B | W |
| FE-H2-N1 | 6.35X3.95 | 1/8'' | 16 | 33.5 | 21 | 20 |
| FE-H2-N2 | " | 1/4'' | " | 35 | 24 | 23 |
| FE-H2-N3 | " | 3/8'' | " | 36.5 | 24.5 | 26 |
| FE-H3-N2 | 9.53X6.35 | 1/4'' | 19 | 39.2 | 25.5 | 23 |
| FE-H3-N3 | " | 3/8'' | " | 40.7 | 26 | 26 |
| FE-H3-N4 | " | 1/2'' | " | 43.9 | 30 | 32.5 |
| FE-H4-N2 | 12.7X9.53 | 1/4'' | 24 | 47.5 | 28.5 | 29 |
| FE-H4-N3 | " | 3/8'' | " | " | 29 | " |
| FE-H4-N4 | " | 1/2'' | " | 49.3 | 33 | 32.5 |
| FE-H6-N4 | 19.05X15.8 | '' | 32 | 60 | 37.5 | 38 |
| FE-H6-N6 | " | 3/4'' | " | 62 | 38 | 42 |
| FE-H8-N6 | 25.4X22.2 | " | 41 | 72.5 | 43.5 | 49 |
| FE-H8-N8 | " | 1'' | " | 75 | 47.5 | 54 |

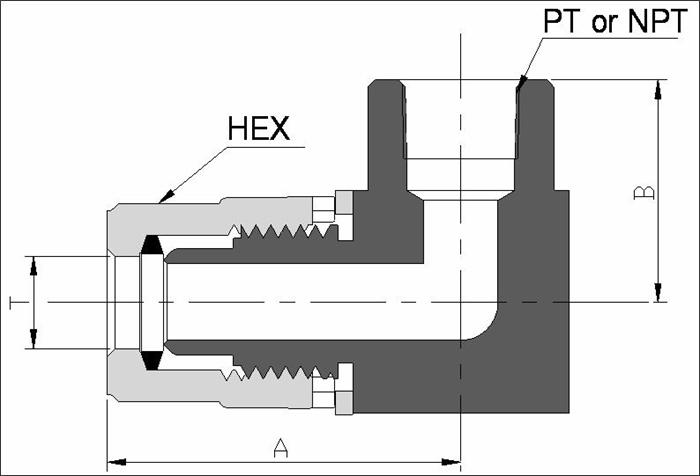

结构图
